Cupolas

Pre-painted 29ga construction
Available in over 100 standard colors plus Kynar
All metal edges are hemmed; no need to worry about red-rust
24", 36" & 48" ship knocked-down
Roof and sides interlock for weathertight connection
Flashing trim is available from MWI. With flashing sets, the mounting curb is made on site by the contractor (build your own wooden curb)
Universal base also available. Ships assembled separate of the roof and side assembly. Eliminates the need to have to build your own wooden curb onsite.

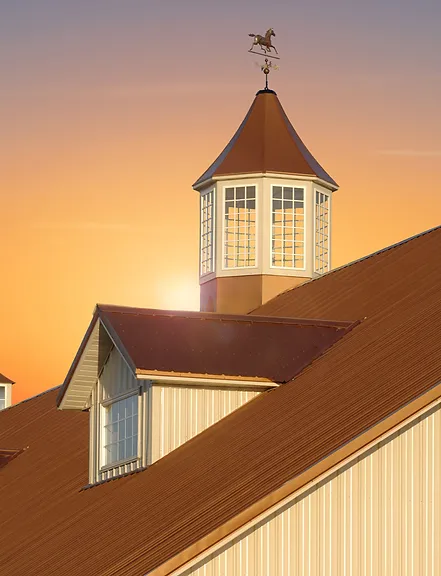

These majestic, massive cupolas are available in either vented or window side configuration (48" & 84" Octagon and 66" Square Cupolas)

Louver sides contain two, 9-louver panels per side
Window sides contain two, 6-light panels per side
- Windows are 1/8” clear Polycarbonate with extruded PVC trim and mullions
- 100% silicone caulk is used to seal the window trim to the window panel and side wall steel
¾” ACX Plywood used in the roof module and side wall construction
Roof and side walls are 100% clad in SMP painted 29 gauge sheet metal
All exterior fasteners are zinc plated or plated with supplemental paint top coat
Powder-coated, trim components are coated with 3 – 4 mils of TGIC Powder available in smooth and textured finishes

66" Square Cupola

18 ga. welded frame
Prepainted roof and wall louvers
Roof and sides assembled at the factory
Total height is 80.5" with louvers (without weathervane)
Total height is 84" with windows (without weathervane)
Flashing trim is available from MWI Components. With flashing sets, the mounting curb is made on site by the contractor (build your own wooden curb)
Universal base also available. Ships assembled separate of the roof and side assembly. Eliminates the need to have to build your own wooden curb onsite.

48" & 84" Octagon Cupola

18 ga. welded frame
Prepainted roof and wall louvers
Roof and sides assembled at the factory
Total height is of the 48" cupola is 77" (without weathervane)
Total height is of the 84" cupola is 138.125" (without weathervane)
Flashing trim is available from MWI Components. With flashing sets, the mounting curb is made on site by the contractor (build your own wooden curb)
Universal base also available. Ships assembled separate of the roof and side assembly. Eliminates the need to have to build your own wooden curb onsite.

MODEL:

24" x 24", 36" x 36", 48" x 48", 66" x 66" Cupola Sides with Windows
Installs on top of any of the flashings
Ships knocked-down (66” Cupola ships assembled)
Grid Patterns: 24" = 2 x 2 (shown on reverse)
- 36" & 48" = 3 x 2 (as shown on component diagram)
- 66" = 2 x 3 (two sets per side)
- 48" octagon = 2 x 4 (shown on reverse)

10-piece Premium Flashing Kit
Specific roof pitch must be ordered and wood support curb is field fabricated. (Frame is 3 1⁄2" higher than standard)
Ships knocked-down

Factory assembled base that requires no wood curb
Adapts to roof pitches from 1/12 up to 12/12
1/12 through 7/12 pitches use model #s:
C242 / C362 / C482 / C662
7+/12 through 12/12 pitches use model #s:
C242HP / C362HP / C482HP
The Universal Base ships with an enclosed top for non-vented applications but can also be requested as vented; it mounts on the top of steel roofing or on purlins
Both new construction and retrofits utilize the same base
Powder coat option available in 50 plus colors
For colors outside our powder coat color offering, flashing sets are available for 1/12-7/12 pitches (fasten flashing set to the universal base on site)

Stock weathervanes come in 24", 30", 46" sizes.

Non-stock weathervanes come in 30" a standard black finish. Specialty weathervanes in gold-bronze, patina, & copper are also available
